DS-PD201P10-WB
$110,037

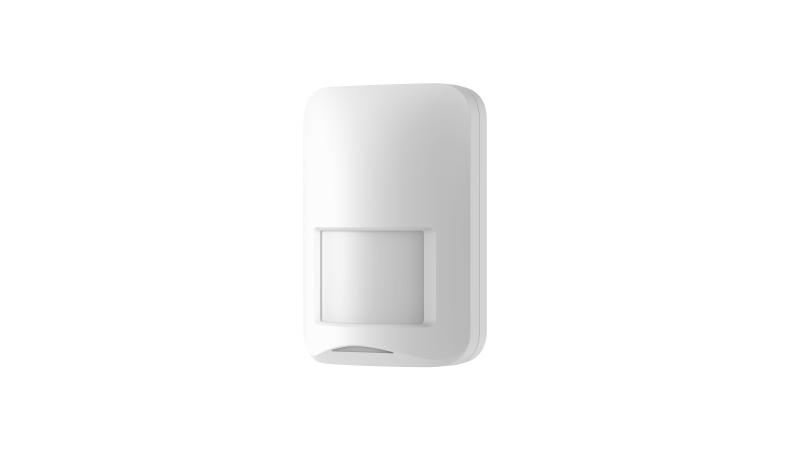

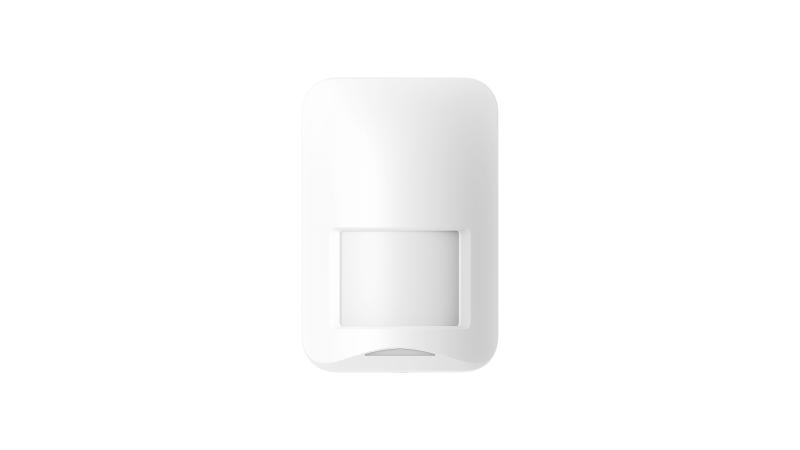

Sensor de Movimiento Inalámbrico Hikvision DS-PD201P10-WB | AX Home 433MHz
Detector PIR inalámbrico 433MHz con inmunidad a mascotas hasta 24kg. Alcance 10m, batería 2 años. Tecnología anti-interferencia. Serie AX Home profesional.
- Rango de detección: 10 m / 90°
- Inmunidad para mascotas de hasta 24 kg
- Salto de frecuencia contra interferencias para una transmisión confiable
- Descripción
Descripción
| Detection performance | |
| Detection method | Passive Infrared |
| Sensor model | SFG321-711 |
| Detection range | 10 m |
| Detection angle | 90° |
| Detection zones | 78 |
| Detectable speed | 0.3~2m/s |
| Sensibilidad | High, Auto, Low |
| Pet immunity | 24 Kg at low sensitivity |
| White light filter | 3500lux |
| Digital processing | Yes |
| Sealed optics | Yes |
| Comunicación | |
| Transmission technology | 433.1-433.7 MHz |
| Transmission range (free space) | Up to 1,200 m |
| Maximum effective radiated power (ERP) | 25 mW max |
| Radio signal modulation | 2GFSK |
| Software features | |
| Temperature indicator | Yes |
| Indication | |
| Indication method | LED |
| Electrical characteristics | |
| Fuente de alimentación | 2 × AA batteries |
| Consumo de energía | max current: 50 mA quiescent current: 8 uA |
| Battery life | Up to 2 years (standby time) |
| General | |
| Installation method | Indoors |
| Installation height | 2 m to 2.4 m |
| Operation temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operation humidity | 10% to 90% |
| Dimension (W×H×D) | 62 x 93 x 41.5 mm |
| Weight | 71.5 g |
| Soporte | Optional Wall & Ceiling brackets, sold separately |
